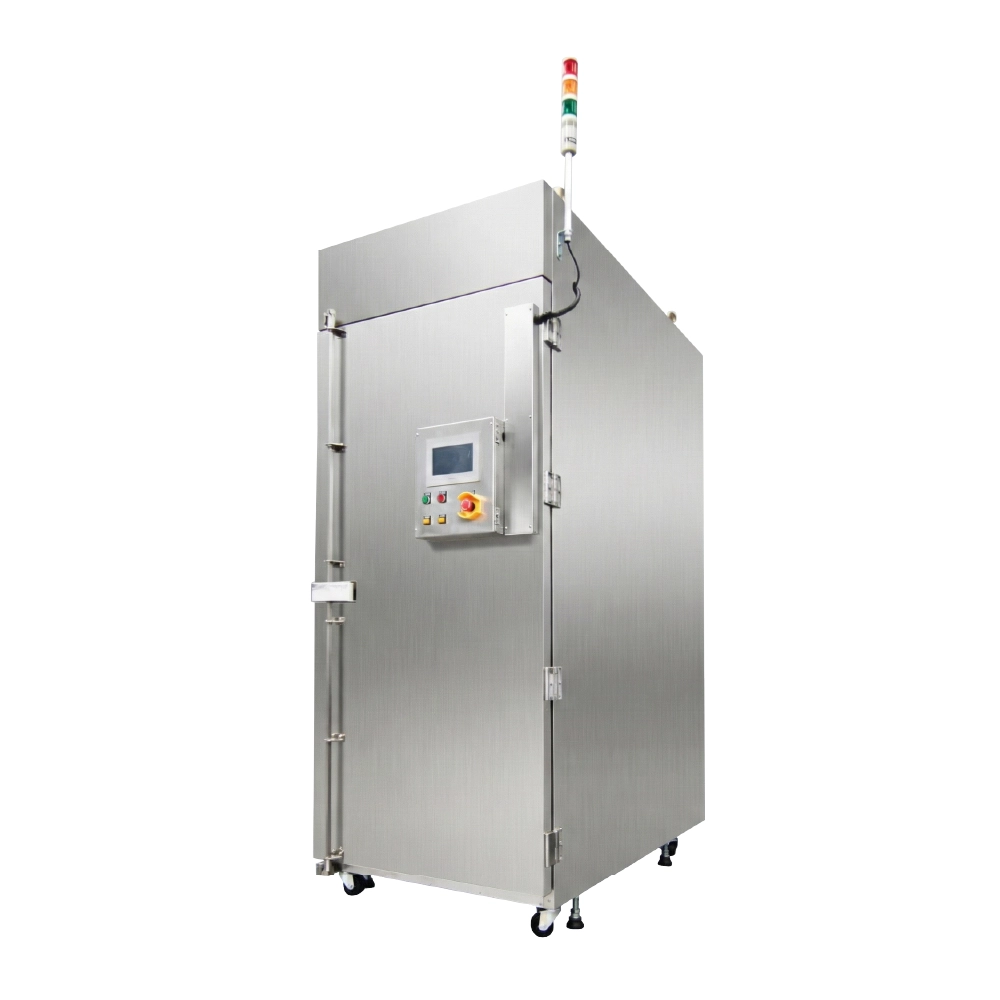

HWPH Preheater
HWPH Preheater
Description:
  •  The unique axles design prevents material jamming and thermal deformation.
  •  The unique air damper device, adjustable according to product requirements, achieves optimal temperature performance. It can be combined with a recirculation system to realize heat energy reuse, aligning with ESG and green manufacturing demands.
  •  Powered by an efficient, energy-saving motor,  achieves significant energy conservation and carbon reduction during extended operation.

Features

  • The unique axles design prevents material jamming and thermal deformation.
  • Gear assembly featuring low-wear characteristics, minimizing dust generation and significantly extending operational lifespan.
  • The unique air damper device, adjustable according to product requirements, achieves optimal temperature performance. It can be combined with a recirculation system to realize heat energy reuse, aligning with ESG and green manufacturing demands.
  • Utilizing high-temp. resistant HEPA filters guarantees a dust-free environment meeting high standards.
  • The chamber, fully welded with argon on all sides, prevents external fine dust, boosting product yield.
  • Meticulously picked high-density rock wool from Japan provides outstanding insulation performance, achieving excellent energy-saving efficiency.
  • Powered by an efficient, energy-saving motor,  achieves significant energy conservation and carbon reduction during extended operation.

Applications

  • FCBGA & FCCSP post-exposure bake ( PEB ).
  • ABF carrier board -Dry-film lamination Preheat & lithography post-exposure bake.


PC/PLC Controlled Oven Specification

↔️ Swipe right or left for more information
Specification
Model HWPH-1000U-A02
External Dimension W950xD1530xH2380
Cleanliness ISO14644-1 Class 5 @ 0.3 µm
Temperature Range RT+10~90°C Max.
Temperature Uniformity ±2°C ( actual board temp. )
Continuous output (50pcs)
Heater Type Hot Air Convection
Temperature Controller Japanese-made temperature controller ( PID + SSR ),
paired with HMI (Human-Machine Interface) and relay PC device.
Power AC220V 3Φ 60HZ (customized upon request)
Applicable Panel Dimension 508x508mm. Thickness 0.1~3mm
Conveyor Direction & Speed Right to left ( facing HMI )
Conveyor speed 0.8~3±0.1m/min
